furnace radiant heating tube by Qingdao Hexin Machinery Co.,Ltd.

 furnace radiant heating  tube

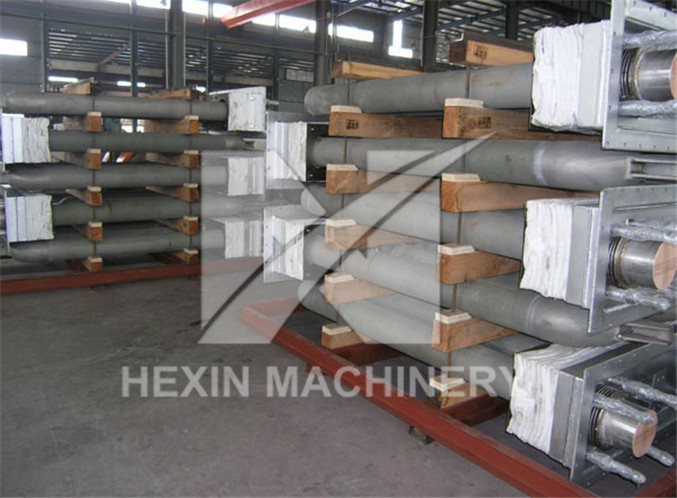

Our company produced kinds of specification W type radiant tube which has excellent quality, to make the effective protection of the radiation tube with the custom export grade wooden box, wooden tray. With professional casting technology and production experience to prolong the service life of the product and to make the products more lightweight, so as to reduce customer cost and improves the use efficiency, and welcomed by the users at home and abroad.

W-type radiant tube

  The W-type radiant tube are usually used for continuous annealing line and galvanizing line vertical annealing furnace,Under the hydrogen nitrogen protective environment, and in order to avoid fuel combustion products contact with the workpiece, allows the fuel combustion procedure to carry out in the radiant tube, Tube is provided by natural gas or coke oven gas combustion heat energy,and radiate the heat to workpiece through tube wall,By way of radiation heat transfer outside tube,and make the strip steel running at a constant speed heated to 900℃quickly from the normal temperature,and make annealing treatment to strip steel.

straight pipe adopt centrifugal casting technology, liquid steel casted into various types of  tube blank under the effort of centrifugal force, according to boring internal hole with boring mill,machining and welding groove with lathe, precision casting for the elbow,after inspection,

Welding and assembly straight pipe and elbow by argon-arc welding according to the drawing. Commonly used material is ZG40Cr25Ni20Si2, ZG40Ni35Cr25Nb, ZG45Ni48Cr28W5Si2,1.4848,1.4852,2.4879etc. NDT tests are strictly carried out, so that to make sure the offered radiant tube have long usage life.

Some regular data about W radiant tubes:

Range of Diameter: 60-2400mm

Max. Length: 7000mm

Min. wall thickness: 4mm

Casting Tolerance: ±1mm

Machining Toleracne: ±0.05mm
