The straight pipe of W type radiant tube adopts centrifugal casting, the molten stell was casted into a variety of tube blank under the action of centrifugal force, after the boring machine boring hole, the lathe machining welding groove, bend adopts precision casting technology, qualified after the examination, to assembly and weld according to the drawing.

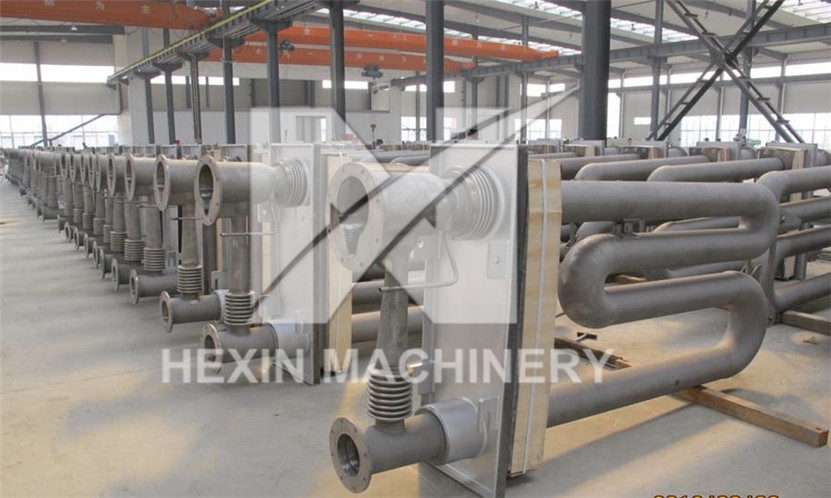

W-type radiant tube

  The W-type radiant tube are usually used for continuous annealing line and galvanizing line vertical annealing furnace,Under the hydrogen nitrogen protective environment, and in order to avoid fuel combustion products contact with the workpiece, allows the fuel combustion procedure to carry out in the radiant tube, Tube is provided by natural gas or coke oven gas combustion heat energy,and radiate the heat to workpiece through tube wall,By way of radiation heat transfer outside tube,and make the strip steel running at a constant speed heated to 900℃quickly from the normal temperature,and make annealing treatment to strip steel.

straight pipe adopt centrifugal casting technology, liquid steel casted into various types of  tube blank under the effort of centrifugal force, according to boring internal hole with boring mill,machining and welding groove with lathe, precision casting for the elbow,after inspection,

Welding and assembly straight pipe and elbow by argon-arc welding according to the drawing. Commonly used material is ZG40Cr25Ni20Si2, ZG40Ni35Cr25Nb, ZG45Ni48Cr28W5Si2，1.4848，1.4852，2.4879etc. NDT tests are strictly carried out, so that to make sure the offered radiant tube have long usage life.

Some regular data about W radiant tubes:

Range of Diameter: 60-2400mm

Max. Length: 7000mm

Min. wall thickness: 4mm

Casting Tolerance: ±1mm

Machining Toleracne: ±0.05mm
