HEXIN MACHINERY , producer of heat resistant castings

  Horn type roller head

  Pit furnace fixtures made of 1.4849 Product name: Pit furnace fixtures Material: 1.4849/AISI 310S Size: Φ1600*1265mm Single Weight:1331kg The picture is a recently produced Pit furnace fixtures , the main size is Φ1600 * 1265mm, the casting material is 1.4849, forged Hanging rod AISI 310S, using silicone solder precision casting process, customers long-term stable order, through all aspects of testing qualification According to customer requirements, packaged and shipped. Well furnace Pit furnace fixtures is mainly used for well furnace heat treatment, 1.4849 can Meet heat treatment needs such as high temperature and corrosion resistance.

  Wire Conveyor belt Product name: Conveyor belt Material: AISI 314 Size: 650*35016mm Single Weight: 690kg Production process: Finished material weaving Image of recently finished line conveyor in AISI 314, size is 650*35016mm. Weight is 690kg, weaved using heat-resistant wire , mainly used for heat treatment Transportation of workpieces. Customers long-term order different specifications and sizes of wire conveyor belt , all aspects of inspection qualified Packed shipped.

  U-type radiant tube Product name: U-type radiant tube Material: 1.4848/St37-3 Dimension: Dimension: DimeDimeDimension: Dimension: DimeDimension: DimeDimension: DimeDimension: DimeDimension: DimensionDimension: DimensionDimension: DimensionDimension Single Weight: 193kg Production process: centrifugal casting Image of the U-shaped radiant tube produced this month, size: Dime168/Dime154*OR304*2360mm, material 1.4848  / St37-3, single weight: 193kg. radiant tube body is made of centrifugal casting, the elbow is made of precision casting. After inspection to meet customer requirements, qualified shipment has been inspected.

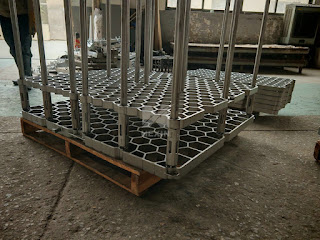

Cast Tray, Heat treatment fixtures Product Name: Cast Tray, Heat treatment fixtures Material: 1.4849 Size: 1500 * 900 * 50mm/1200 * 1000 * 940mm Single weight: 103Kg/486Kg Production process: precision casting The picture shows the recently produced heat treatment trays and fixtures , with dimensions of 1500 * 900 * 50mm/1200 * 1000 * 940mm and a weight of 103Kg/486Kg. The material is 1.4849 and is produced using the silica sol precision casting process. Trays and fixtures are common support devices used in heat treatment to support and fix workpieces. After passing other testing experiments conducted by the quality inspection department, the batch of pallets and fixtures has been packed and shipped.

Propeller by Static casting Product Name: Propeller by Static casting Material: JIS G5501 FC250 Size: Ø 190 * 51mm Single weight: 1.2kg Production process: Static casting The picture shows a batch of propellers produced this month, with dimensions of Ø 190 * 51mm,  material JIS G5501 FC250, and a weight of approximately 1.2kg.  The propeller is produced using static casting technology, with precision machined inner holes.  It has passed dynamic balancing and other inspection and acceptance, and has been packaged and shipped.
